選型表
| MGP4 系列流體電滑環選型表 |
| 型號 | 通道數 | 接口尺寸 | 內孔尺寸 | 壓力范圍 | 型號 | 通道數 | 接口尺寸 | 內孔尺寸 | 壓力范圍 |
| MGP41 | 4進4出 | G1/8" | N/A | 0-50MPa | MGP43-ID19 | 4進4出 | G3/8" | 19mm | 0-50MPa |
| MGP41-ID12 | 4進4出 | G1/8“ | 12mm | 0-50MPa | MGP44 | 4進4出 | G1/2“ | N/A | 0-50MPa |
| MGP42 | 4進4出 | G1/4" | N/A | 0-50MPa | MGP44-ID19 | 4進4出 | G1/2“ | 19mm | 0-50MPa |
| MGP42-ID19 | 4進4出 | G1/4" | 19mm | 0-50MPa | MGP46 | 4進4出 | G3/4" | N/A | 0-50MPa |
| MGP43 | 4進4出 | G3/8" | N/A | 0-50MPa | MGP47 | 4進4出 | G7/8" | N/A | 0-50MPa |

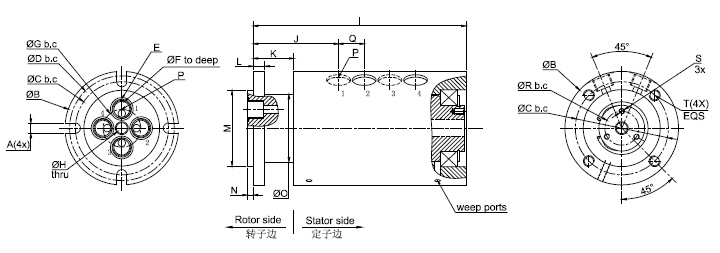

標準圖紙
標準圖紙
| 尺碼參照表 |
| Size | MGP41 | MGP41-ID12 | MGP42 | MGP42-ID19 | MGP43 |
| A | 7.14mm | 7.14mm | 7.14mm | 9.0mm | 9.0mm |
| B | 68.28mm | 74.60mm | 80.95mm | 95.25mm | 98.43mm |
| C | 53.98mm | 60.33mm | 69.85mm | 82.55mm | 82.55mm |
| D | 63.50mm | 69.85mm | 74.60mm | 87.3mm | 90.47mm |
| E | 2-015
O-Ring
[14.00mm] | 2-015
O-Ring
[14.00mm] | 2-017
O-Ring
[17.17mm] | 2-017
O-Ring
[17.17mm] | 2-019
O-Ring
[20.35mm] |
| F | 4.0mm | 4.0mm | 6.4mm | 6.4mm | 9.5mm |
| G | 26.97mm | 33.32mm | 34.93mm | 44.45mm | 38.10mm |
| H | N/A | 12.7mm | N/A | 19.05mm | N/A |
| I | 119.3mm | 120.3mm | 155.4mm | 160.7mm | 177.3mm |
| J | 50.6mm | 51.6mm | 58.4mm | 63.6mm | 66.8mm |
| K | 25.4mm | 25.4mm | 25.4mm | 28.5mm | 30.1mm |
| L | 6.35mm | 6.35mm | 6.35mm | 7.92mm | 7.92mm |
| M | 47.63mm | 55.55mm | 60.33mm | 69.85mm | 66.68mm |
| N | 3.18mm | 3.18mm | 3.18mm | 3.18mm | 3.18mm |
| O | 44.5mm | 46.0mm | 55.9mm | 63.5mm | 65.4mm |
| P | G1/8" | G1/8" | G1/4" | G1/4" | G3/8" |
| Q | 14mm | 14mm | 21.03mm | 21.03mm | 24.13mm |
| R | N/A | 18.5mm | N/A | 34.90mm | N/A |
| S | N/A | M3*0.5 | N/A | M5*0.8 | N/A |
| T | M6*1.0 | M6*1.0 | M6*1.0 | M8*1.25 | M8*1.25 |
標準圖紙
| 尺碼參照表 |
| Size | MGP43-ID19 | MGP44 | MGP44-ID19 | MGP46 | MGP47 |
| A | 9.0mm | 9.0mm | 9.0mm | 11.00mm | 13.49mm |
| B | 106.35mm | 107.95mm | 125.4mm | 131.75mm | 182.55mm |
| C | 92.08mm | 92.08mm | 104.78mm | 114.30mm | 146.05mm |
| D | 98.43mm | 100.00mm | 117.48mm | 122.22mm | 165.10mm |
| E | 2-019
O-Ring
[20.35mm] | 2-023
O-Ring
[26.70mm] | 2-023
O-Ring
[26.70mm] | 2-026
O-Ring
[31.47mm] | 2-028
O-Ring
[37.77mm] |
| F | 9.5mm | 12.7mm | 12.7mm | 19.05mm | 25.40mm |
| G | 47.63mm | 44.5mm | 57.15mm | 53.98mm | 76.2mm |
| H | 19.05 | N/A | 19.05mm | N/A | 25.4mm |
| I | 187.2mm | 209.5mm | 218.2mm | 247.1mm | 268.4mm |
| J | 67.2mm | 75.5mm | 81.5mm | 86.1mm | 115.1mm |
| K | 28.5mm | 34.9mm | 42.8mm | 38.1mm | 57.2mm |
| L | 7.92mm | 9.53mm | 11.10mm | 11.10mm | 15.88mm |
| M | 76.2mm | 79.385mm | 92.1mm | 95.25mm | 117.48mm |
| N | 3.18mm | 4.75mm | 4.75mm | 4.75mm | 4.75mm |
| O | 72.1mm | 74.2mm | 88.9mm | 87.6mm | 133.4mm |
| P | G3/8" | G1/2" | G1/2" | G3/4" | G1" |
| Q | 26.16mm | 30.12mm | 30.12mm | 36.93mm | 45.57mm |
| R | 34.90mm | N/A | 34.90mm | N/A | 34.90mm |
| S | M5*0.8 | N/A | M5*0.8 | N/A | M5*0.8 |
| T | M8*1.25 | M8*1.25 | M8*1.25 | M8*1.25 | M12*1.75 |
- 注：以下特別要求均可定制，交期會增加3~15天不等，費用增加5%~50%不等，本公司大部分基礎配件都有標準化，模塊化，非標定制也可大大減少成本和交期。
- ① 接頭大小。
- ② 壓力大小。
- ③ 轉速高低。
- ④ 中空內孔大小。
- ⑤ 腐蝕性介質，全不銹鋼材質，防爆，高溫。
|
基于本型號進行定制
默孚龍電子有限公司是國內最早從事滑環技術研究，生產的公司之一, 對各個行業定制滑環經驗豐富，擁有超過10000種滑環方案圖紙數據庫。
如何進行特殊要求訂購?

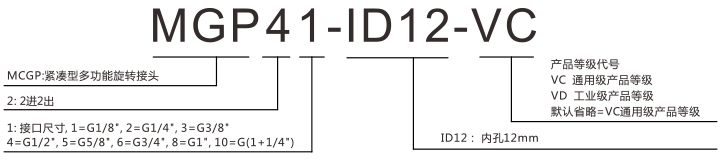

定制型號說明:
MGP4
例子:
- 如果您需要訂購 MGP4 ,支持65路*信號,訂購型號為MGP4-S65.
